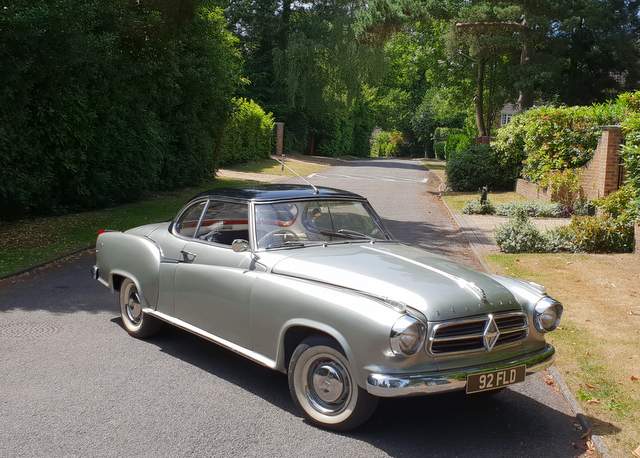

Ray Marsh 1960 Coupé 92 FLD
I have been asked for Ray's details they are: Tannery Lane Coackworks http://www.tlcoachworks.com/
Phone 0044 (0)7884 380705
Parts Restoration pages
Ray has bought a rolling Isabella Coupé shell from Norman Williams and has started restoration. The shell and parts were collected from Norman Williams in Birmingham by Ray Marsh, Graham Florence and John Wallis on Sunday 19th Feb. to the car's new home in Surrey.
Work has started on the repair of the boot lid.
Sunday Feb. 19th 2012
Norman had labeled and boxed all the parts so collection of shell and parts was pain free.
On the ramp for a quick look.

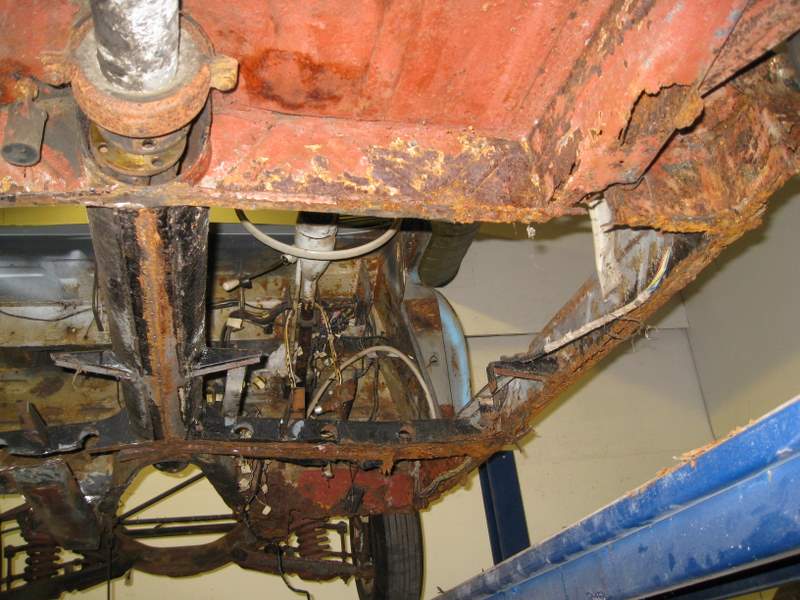

Rear chassis leg and radius arm cup in poor condition
Ray wondering what he had bought.
Monday Feb 20th 2012

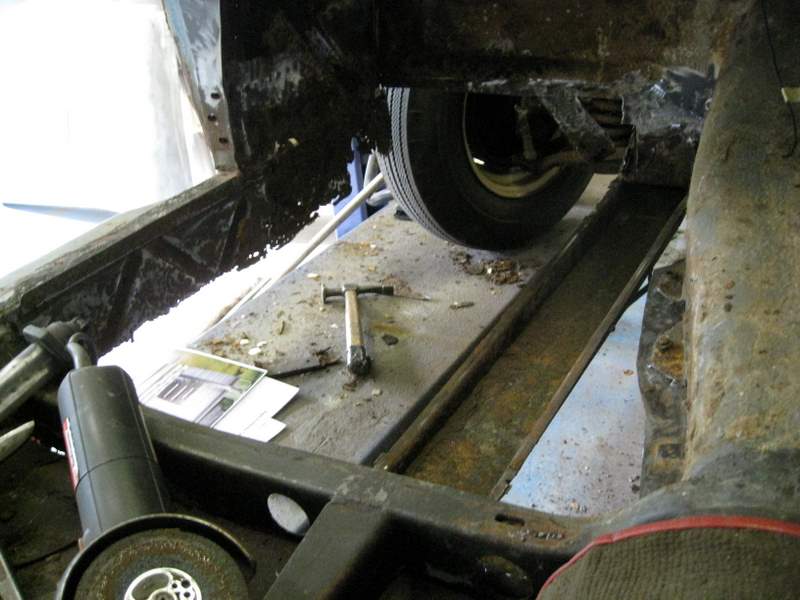

The Floor and outer sill were removed and spot welds ground down ready for new metal to be mig welded in.
Many old patches and repairs had to be ground away first.

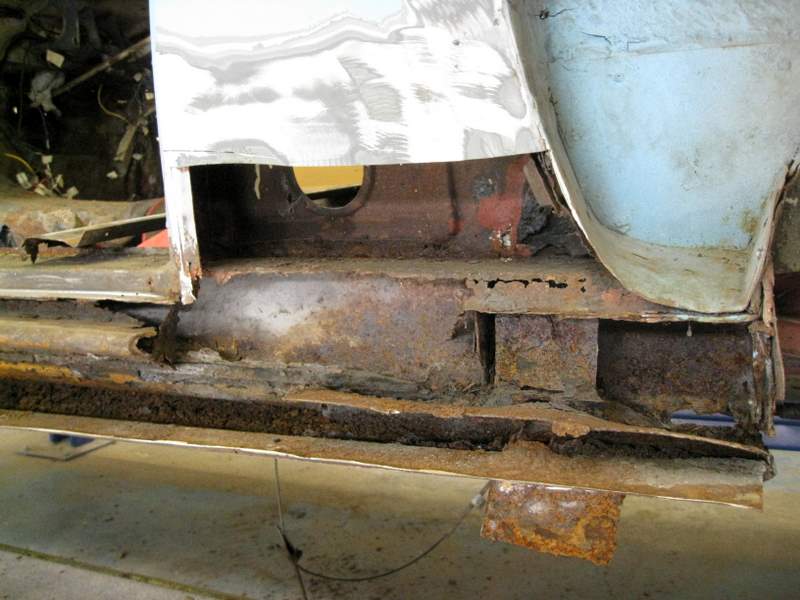

Internal sill will requires extensive repair but it is boardline salvageable.
Front chassis extension section in good condition.
Nick Driscoll has "loaned" Ray his coupé floor so repairs could progress.
Tuesday Feb 21th 2012

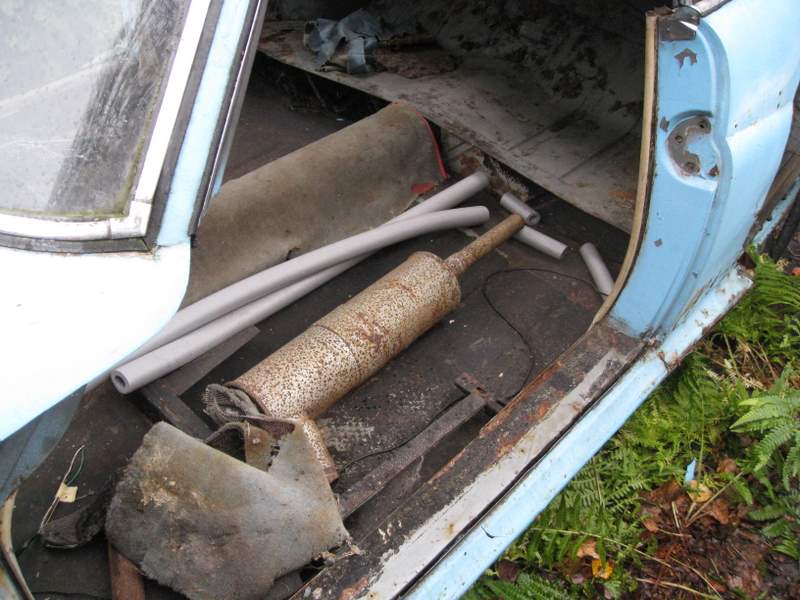

The old floor just fell off the sound deadening mat being the strongest part
First fitting of floor panel.
Wednesday Feb 22th 2012
Trial fitting of new floor.
Repair to A post door hinge mounting. The cages for the captive nuts will be welded in later.
Thursday Feb 23th 2012
Norman Williams has kindly "lent" Ray a set of radius arm sockets and caps he bought for his own car in Korbach last year.

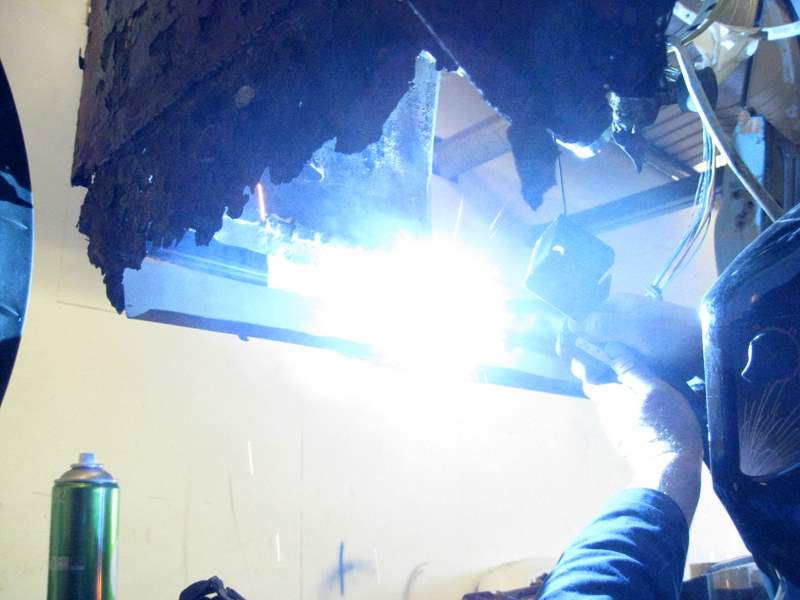

Chassis leg being readied for cap welding.
Friday Morning Feb 24th 2012
The radius arm caps are now welded in on both sides and arms temporally fitted.
The repaired boot lid has been fitted up for the first time.
Friday Evening Feb 24th 2012

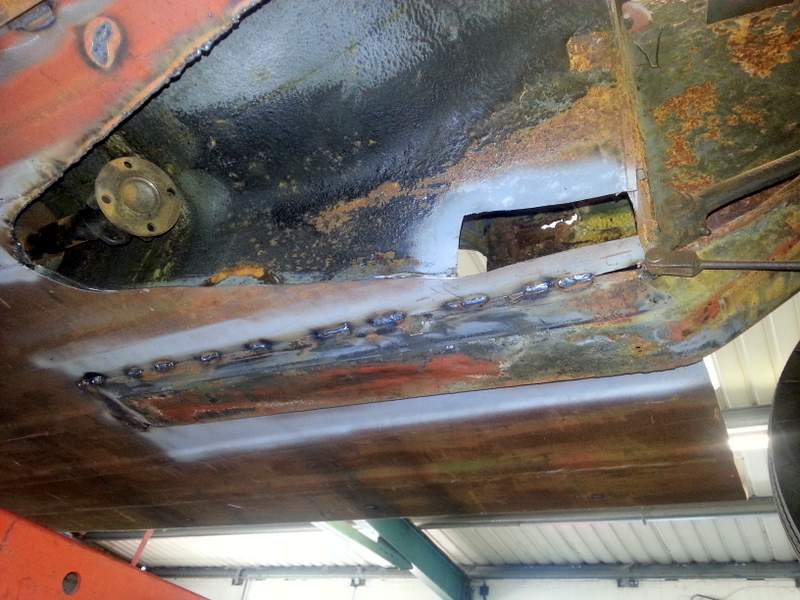

The new floor is half welded in, the rear chassis legs and caps sorted seat belt mountings fixed but time has run out after a marathon week the coupé is going home as the 4 post lift is not available again for a while.
The next job is to sort though all the parts boxes find out other repair parts required and get them on order. I hope to pick up some parts in Essen next month.
The car is back in a small garage while the panels are sorted.
Rear wing in primer.

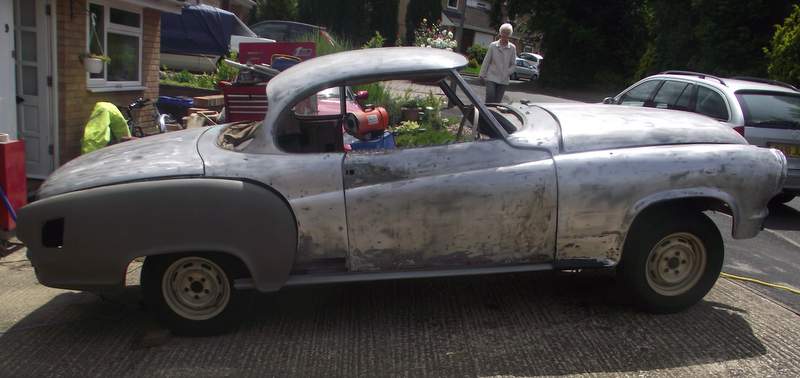

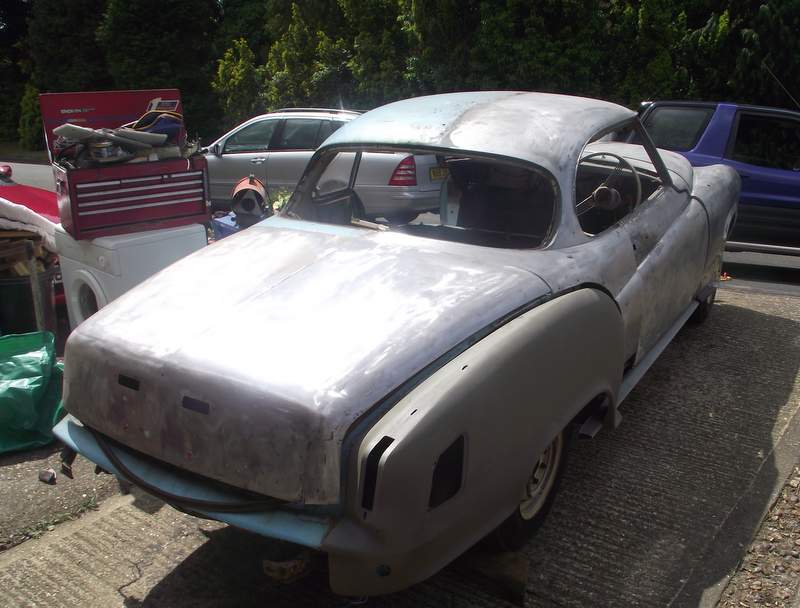

The car is now stripped of paint and repairs have begun
Rays new Workshop Tannery Lane Coachworks Note his Coupé in the corner.
Rust removal with sand blaster.

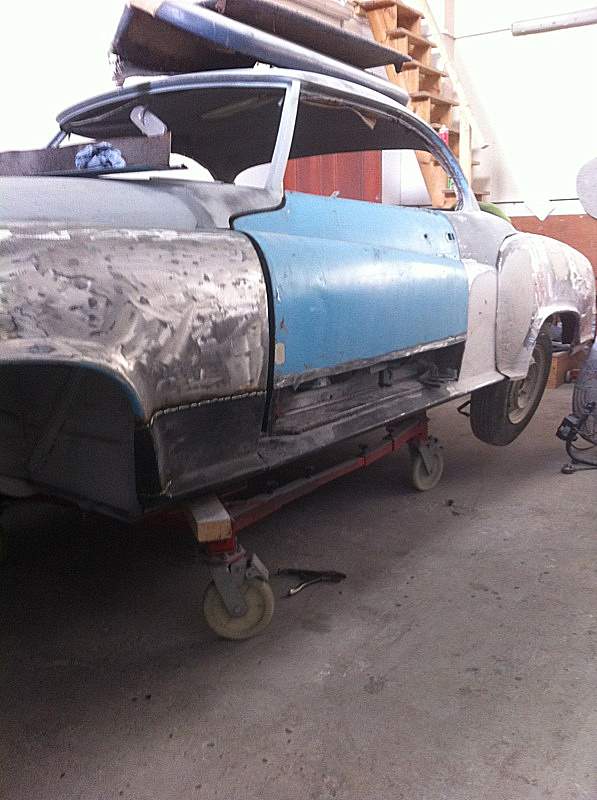

Work has now begun on the doors. The bottom skin half is being replaced and the base.

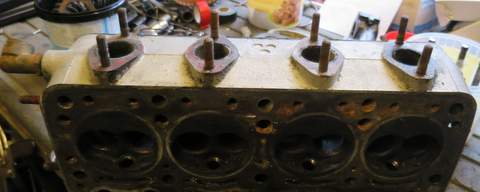

Ray has taken his engine apart and it will require a regrind and rebore.
November 2016 work resumes
After a long pause work is starting again on Ray's Coupé we hope to have it finished by May 2017.
First job is to find all the parts and start the restoration process
To be continued.
